Choosing between two high-end AIO liquid coolers can be surprisingly difficult when both belong to the same product family. The Arctic Liquid Freezer III Pro 360 vs 420 comparison is a perfect example. Both coolers are built around Arctic’s Liquid Freezer III Pro platform, featuring a powerful pump, integrated VRM fan, thick radiator design, high-performance fans, and support for modern AMD and Intel desktop processors. The biggest difference is their radiator and fan configuration. The Pro 360 combines a 360mm radiator with three 120mm P12 Pro fans, while the Pro 420 uses a much larger 420mm radiator and three 140mm P14 Pro fans.
That difference gives the Pro 420 more physical cooling capacity, but it also creates additional case-compatibility requirements. The Pro 360 is easier to install in a wider range of performance-oriented cases and remains capable of handling powerful CPUs. The Pro 420 is more interesting for enthusiasts who want additional thermal headroom for sustained CPU workloads.
Rather than assuming that the bigger cooler is automatically the better choice, this comparison looks at cooling performance, airflow, noise, installation, compatibility, gaming, productivity, and long-term ownership.
Feature-by-Feature Comparison Table
The two coolers share many technologies, so the most important differences are concentrated around radiator dimensions and fan configuration.
| Feature | Arctic Liquid Freezer III Pro 360 | Arctic Liquid Freezer III Pro 420 |
|---|---|---|
| Radiator Size | 360mm | 420mm |
| Radiator Dimensions | 398 × 120 × 38mm | 458 × 138 × 38mm |
| Radiator Material | Aluminum | Aluminum |
| Included Fans | 3 × P12 Pro | 3 × P14 Pro |
| Fan Diameter | 120mm | 140mm |
| Fan Speed | 600–3000 RPM | 400–2500 RPM |
| Maximum Airflow | Up to 77 CFM | Up to 110 CFM |
| Static Pressure | Up to 6.9 mmH₂O | Up to 5.2 mmH₂O |
| Pump Speed | 800–2800 RPM | 800–2800 RPM |
| VRM Fan | Yes | Yes |
| VRM Fan Speed | 400–2500 RPM | 400–2500 RPM |
| Cold Plate | Copper micro-skived | Copper micro-skived |
| Tubing | 450mm | 500mm |
| Thermal Paste | MX-6 | MX-6 |
| AMD Support | AM4 / AM5 | AM4 / AM5 |
| Intel Support | LGA1700 / LGA1851 | LGA1700 / LGA1851 |
| Warranty | 6 years | 6 years |
| Approx. Weight | 2020g | 2358g |
| Main Advantage | Excellent performance and flexibility | Maximum cooling capacity |
The Pro 420 is physically larger in almost every relevant dimension except radiator thickness. Its 458mm-long and 138mm-wide radiator provides more frontal surface area than the 398 × 120mm radiator used by the Pro 360.
At the same time, the Pro 360’s P12 Pro fans offer a higher maximum rotational speed and greater rated static pressure. The Pro 420 counters with larger P14 Pro fans capable of moving considerably more air per fan.
Quick Highlights Table
For readers who want the main differences without going through every technical detail, the following table provides a quick overview.
| Category | Liquid Freezer III Pro 360 | Liquid Freezer III Pro 420 |
|---|---|---|
| Cooling Potential | Excellent | Extremely High |
| Radiator Area | Large | Very Large |
| Fan Configuration | 3 × 120mm | 3 × 140mm |
| Maximum Fan Speed | 3000 RPM | 2500 RPM |
| Airflow per Fan | Up to 77 CFM | Up to 110 CFM |
| Case Compatibility | Broader | More Limited |
| High-Power CPUs | Excellent | Excellent |
| Sustained Workloads | Very Strong | Stronger Headroom |
| Gaming | Excellent | Excellent |
| Workstation Use | Excellent | Excellent+ |
| Installation | Easier | More Demanding |
| Large Full-Tower Builds | Good | Excellent |
| Compact Builds | Better Choice | Usually Impractical |
| Upgrade Flexibility | High | Depends on Case |
| Ideal User | Enthusiast Gamer | Extreme Performance Builder |
The Pro 360 is essentially the more adaptable member of the pair, while the Pro 420 focuses on maximizing the cooling potential of Arctic’s Liquid Freezer III Pro platform.
Key Takeaways
Before getting into the detailed performance discussion, several important points stand out.
- The Liquid Freezer III Pro 420 has the larger radiator, giving it more surface area for transferring heat.
- The Pro 420 uses three 140mm P14 Pro fans instead of the Pro 360’s three 120mm P12 Pro fans.
- The Pro 360’s P12 Pro fans can reach up to 3000 RPM, providing very high static-pressure capability.
- The Pro 420’s P14 Pro fans can deliver up to 110 CFM per fan.
- Both coolers use the same 800–2800 RPM pump platform.
- Both feature an integrated VRM fan for airflow around the CPU socket.
- Both use a copper micro-skived cold plate.
- The Pro 360 is easier to accommodate because 360mm radiator support is considerably more common.
- The Pro 420 is better suited to very large cases with generous radiator clearance.
- The 420’s additional capacity becomes more useful as CPU power consumption increases.
- The difference between the two can be much smaller during moderate CPU workloads.
- Both are capable choices for modern high-performance AMD and Intel CPUs.
- A custom fan curve can make either cooler substantially more pleasant during everyday use.
Pros & Cons
The Arctic Liquid Freezer III Pro 360 vs 420 decision becomes clearer when the strengths and weaknesses of each model are separated.
Arctic Liquid Freezer III Pro 360 Pros
- Strong cooling performance
- Excellent high-load thermal capability
- Three high-performance P12 Pro fans
- Up to 3000 RPM fan speed
- High static pressure
- More widely supported 360mm radiator format
- Excellent option for gaming PCs
- Suitable for demanding CPUs
- Integrated VRM fan
- Copper micro-skived cold plate
- MX-6 thermal compound included
- Six-year warranty
- 450mm tubing
Arctic Liquid Freezer III Pro 360 Cons
- Smaller radiator than the 420
- Smaller fans require higher RPM for maximum airflow
- Maximum-speed operation can become noisy
- Less thermal headroom than the 420 under extreme sustained loads
- Still requires careful radiator-clearance planning
Arctic Liquid Freezer III Pro 420 Pros
- Larger radiator
- Three 140mm P14 Pro fans
- Up to 110 CFM airflow per fan
- Excellent sustained-load performance
- Greater thermal headroom
- Lower maximum fan RPM than the 360
- 500mm tubing
- Integrated VRM fan
- Strong solution for high-power CPUs
- Excellent for large enthusiast cases
- Six-year warranty
Arctic Liquid Freezer III Pro 420 Cons
- Requires considerably more case space
- More difficult to install
- Heavier than the 360
- Fewer cases support 420mm radiators
- Maximum fan speed can still be audible
- Additional cooling capacity may not matter much for lower-power CPUs
Radiator Design and Cooling Capacity
The radiator is the biggest physical difference between these two coolers.
The Pro 360 uses a radiator measuring 398 × 120 × 38mm. The Pro 420 increases those dimensions to 458 × 138 × 38mm.
The thickness remains the same at 38mm, meaning Arctic primarily increases the radiator’s cooling potential by making it longer and wider.
That additional surface area provides more room for heat to move from the coolant into the radiator fins before being exhausted by the fans.
For high-power CPUs, this can be particularly useful.
When a processor is consuming significant power continuously, the cooling system must repeatedly remove large amounts of heat. A larger radiator gives the liquid loop more surface area through which to dissipate that heat.
However, there is a point where additional radiator capacity provides diminishing returns.
If your CPU is producing only a moderate amount of heat, a powerful 360mm AIO can already maintain relatively low temperatures. Moving to a 420mm cooler may therefore produce only a modest temperature improvement.
The larger cooler becomes more meaningful when CPU power remains high for extended periods.
Fan Performance
The fan configuration is another major distinction.
The Pro 360 includes three P12 Pro 120mm fans. They operate from 600 to 3000 RPM and are rated for up to 77 CFM airflow and 6.9 mmH₂O static pressure.
Those specifications make the P12 Pro an aggressive radiator fan.
The Pro 420 instead uses three P14 Pro 140mm fans. These run from 400 to 2500 RPM and are rated for up to 110 CFM airflow with up to 5.2 mmH₂O static pressure.
The difference illustrates two approaches to radiator cooling.
The 360 uses smaller fans with a higher maximum rotational speed. This allows the P12 Pro to generate substantial pressure when airflow resistance increases.
The 420 takes advantage of larger fan blades. A 140mm fan can move a greater volume of air without spinning as quickly as a 120mm fan.
For normal workloads, the 420’s larger fans can therefore deliver substantial airflow while operating below their maximum speed.
Neither cooler should be judged solely by its maximum RPM.
Fan size, radiator area, blade design, static pressure, airflow, fan curve, case airflow, and CPU power all contribute to real-world cooling.

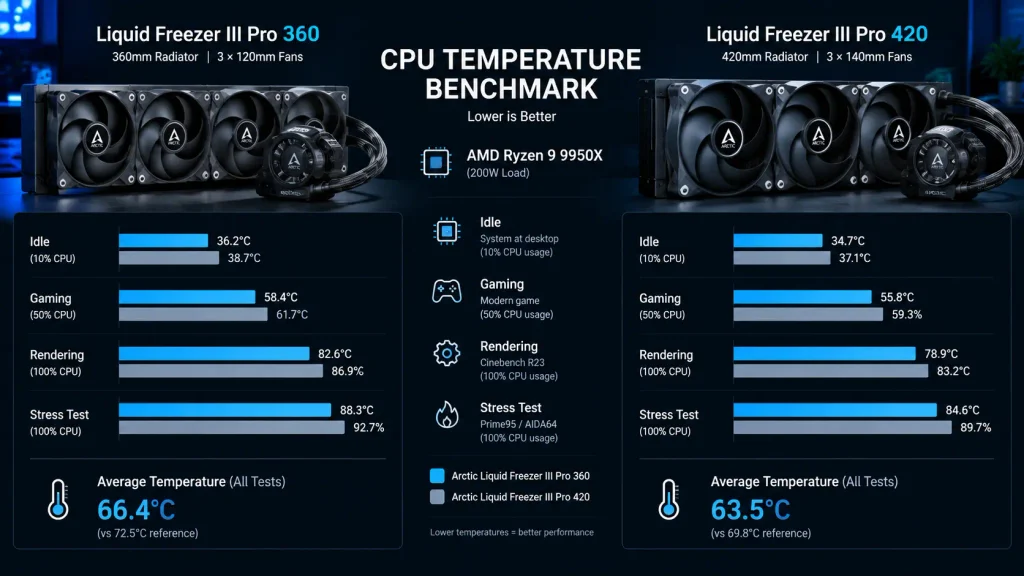

CPU Cooling Performance
The Pro 360 and Pro 420 are both designed for demanding CPUs.
The 360mm model has enough cooling capacity for many enthusiast processors, including high-end gaming CPUs and workstation-class chips.
The 420 takes the same fundamental design and expands the radiator and fan system.
Independent testing of the Liquid Freezer III Pro 420 has demonstrated strong thermal performance with high-end CPUs. In Tom’s Hardware’s testing using a Ryzen 9 9950X, the cooler produced a 73.6°C result at approximately 200W CPU power. The reported difference against the best 360mm result was only around 0.9°C at that particular workload.
This is an important observation.
It demonstrates that a high-quality 360mm AIO can already be extremely capable.
The 420’s advantage is not necessarily a dramatic temperature reduction in every scenario. Instead, it provides additional capacity that can become increasingly useful when power consumption and heat output rise.
Heavy Sustained Workloads
Long-running CPU workloads are where the larger 420mm radiator makes the most sense.
Rendering, video encoding, 3D modeling, large software builds, simulations, scientific workloads, and repeated CPU benchmarking can maintain high processor utilization for extended periods.
Under these conditions, the cooler cannot rely on short-term thermal capacity. It needs to continuously remove heat.
The Pro 420’s larger radiator gives the liquid loop more surface area for heat dissipation.
Its three P14 Pro fans also provide substantial airflow through the radiator.
The Pro 360 remains highly capable, but the 420 provides additional thermal overhead for users who intentionally operate their CPUs at high power.
For a workstation that spends hours rendering or compiling, that additional headroom can be more useful than it is for a typical gaming machine.
Gaming Performance
Gaming workloads usually do not stress a CPU in exactly the same way as long-duration rendering.
CPU utilization varies from game to game, and GPU utilization often dominates the total system workload.
As a result, both coolers can provide excellent gaming performance.
The Pro 360 is particularly attractive for gaming builds because it combines high cooling capacity with easier case compatibility.
A high-end CPU paired with the Pro 360 can benefit from a large thermal margin without requiring the enormous radiator clearance associated with a 420mm AIO.
The Pro 420 is still useful for gaming, particularly if the system includes a high-power CPU and the user wants additional thermal headroom.
It can also make sense for users who want to maintain lower fan speeds during heavy gaming sessions.
However, the difference may not justify the larger cooler for every gaming build.
Noise Levels
Noise is influenced heavily by fan speed.
The Pro 360’s P12 Pro fans can reach 3000 RPM, which means the cooler has considerable performance available when temperatures rise. The downside is that running small fans at very high speeds can generate noticeable acoustic output.
The Pro 420’s P14 Pro fans top out at 2500 RPM.
Their larger diameter allows each fan to move more air, but that does not mean the cooler is automatically silent.
Independent testing of the Pro 420 recorded 52.7 dBA at maximum volume and 42.4 dBA during a 150W workload.
These figures highlight why fan curves matter.
There is rarely a reason to operate a high-end AIO at maximum fan speed during every task.
A well-configured curve can keep the fans at lower speeds during web browsing, office work, media playback, and light gaming, while allowing them to increase speed when the CPU actually needs additional cooling.
Case Compatibility
Case compatibility may ultimately determine the winner for your build.
The Pro 360 radiator is 398mm long and 120mm wide.
The Pro 420 radiator is 458mm long and 138mm wide.
Those extra dimensions are significant.
A case can support a 360mm radiator without necessarily having enough room for a 420mm radiator. Even cases marketed as large performance chassis can have restrictions around top radiator length, front-panel mounting, motherboard heatsinks, RAM, or GPU clearance.
The 420 therefore requires more careful planning.
If your case supports 420mm radiators with sufficient fan clearance, it becomes a compelling option.
If your case only supports 360mm radiators, the decision is obviously much simpler.
The Pro 360 is also generally easier to move between different cases because 360mm radiator support is more widespread.
Installation Considerations
Both coolers use Arctic’s modern Liquid Freezer III mounting approach and support AM4, AM5, LGA1700, and LGA1851 platforms.
The Pro 360’s smaller physical dimensions make installation more manageable.
The Pro 420 has a longer radiator and larger fans, which can make positioning more difficult.
Its 500mm tubing is useful for large cases because it provides additional routing flexibility.
However, longer tubing does not solve every compatibility problem.
Before purchasing, check the exact radiator support position in your case.
Pay attention to:
- Radiator length
- Radiator width
- Radiator thickness
- Fan thickness
- Motherboard heatsink clearance
- RAM clearance
- GPU clearance
- Top-panel clearance
- Front-panel clearance
- Tubing routing
The cooler may technically fit while still creating clearance problems with another component.
Pump and Cold Plate
There is less difference between the two coolers in this area.
Both use the same basic pump architecture with an operating range of 800–2800 RPM.
Both also feature Arctic’s copper micro-skived cold plate.
The cold plate is important because it provides the interface between the CPU and the liquid loop.
The Pro 360 does not use a fundamentally weaker cooling engine.
Instead, both coolers use the same platform and change the radiator and fan configuration.
That makes the comparison more interesting because the 420’s additional performance comes primarily from increased heat-dissipation capacity rather than a completely different pump system.
VRM Cooling
Both models include Arctic’s integrated VRM fan.
This small fan is positioned around the CPU socket area and provides additional airflow around the motherboard VRM region.
VRM cooling can become relevant when a high-end CPU operates at elevated power levels for long periods.
The additional airflow can help move heat away from the area surrounding the CPU socket.
For ordinary systems, the effect may not be dramatic.
For high-power enthusiast builds, however, it is a useful feature that both coolers provide.
AMD and Intel Compatibility
Both models support several current and recent desktop platforms.
Compatible sockets include AMD AM4 and AM5 along with Intel LGA1700 and LGA1851.
That gives the Liquid Freezer III Pro range broad compatibility across gaming and workstation systems.
However, socket compatibility is only one part of the buying decision.
You should also verify whether the mounting system included with your specific retail package matches your motherboard platform and whether the radiator can physically fit your chassis.
Intel users should pay particular attention to Arctic’s mounting requirements because the Liquid Freezer III platform uses its own mounting solution designed around the CPU socket.
Long-Term Reliability
AIO coolers require a different approach to long-term ownership than traditional air coolers.
The Liquid Freezer III Pro models use a sealed liquid-cooling loop, meaning there is no routine coolant-refilling procedure for the user.
Arctic provides a six-year warranty for the models.
Long-term maintenance is therefore primarily about keeping the radiator and fans free of excessive dust.
A dusty radiator can restrict airflow and reduce cooling efficiency.
Periodic cleaning of the radiator, fans, and surrounding case filters can help maintain performance.
It is also useful to monitor pump behavior and unusual noises.
A sudden change in pump sound, unexplained temperature increase, or fan behavior can indicate that the system should be inspected.
Pro 360 vs Pro 420 for High-End CPUs
For a high-end CPU, both coolers are capable.
The deciding factor is how aggressively the CPU is being used.
A gaming-focused processor running within normal power limits may not need the enormous thermal capacity of a 420mm radiator.
A high-core-count CPU running long rendering jobs or unrestricted power settings can make better use of the larger cooler.
The Pro 420 therefore makes the most sense when you are building around maximum CPU performance rather than simply wanting an oversized AIO.
The Pro 360 remains a strong solution when your CPU is powerful but your case or budget makes the 420 less practical.
Pro 360 vs Pro 420 for Future Upgrades
The 420 has an obvious advantage in raw cooling capacity, which can be useful if you plan to move to a higher-power processor later.
However, future compatibility is not guaranteed simply because the cooler is larger.
Your next case must still support a 420mm radiator.
The Pro 360’s widespread case compatibility may actually make it more convenient for users who frequently change cases or rebuild their systems.
Therefore, future-proofing should include both cooling capacity and physical compatibility.
Buying Recommendations
Buy the Liquid Freezer III Pro 360 if:
- You want excellent high-end CPU cooling.
- Your case supports 360mm but not 420mm radiators.
- You are primarily gaming.
- You want broader case compatibility.
- You prefer a slightly more manageable installation.
- You are building a powerful but reasonably balanced PC.
- You want very high static-pressure fan performance.
- You plan to use an ATX case with standard enthusiast radiator support.
Buy the Liquid Freezer III Pro 420 if:
- Your case supports a 420mm radiator.
- You use a high-power desktop CPU.
- You regularly perform long CPU-intensive workloads.
- You want additional thermal headroom.
- You have a large ATX or full-tower chassis.
- You prefer 140mm radiator fans.
- You are building an enthusiast workstation or extreme-performance PC.
Check Before Ordering
Regardless of which model you choose, verify your case specifications first.
For the 360, check that the chassis supports a 360mm radiator with the required thickness.
For the 420, check the exact radiator length and width clearance rather than simply looking for “420mm support.”
Also consider whether installing a large radiator will interfere with your motherboard, RAM, GPU, storage devices, or power cables.
Final Verdict
The Arctic Liquid Freezer III Pro 360 vs 420 comparison is ultimately a choice between two levels of cooling capacity within the same high-performance design family.
The Liquid Freezer III Pro 360 offers an impressive combination of radiator capacity, high-speed P12 Pro fans, strong static pressure, modern CPU compatibility, and much broader case compatibility. For a powerful gaming PC or workstation, it can provide more than enough thermal performance.
The Liquid Freezer III Pro 420 takes that concept further with a substantially larger radiator and three 140mm P14 Pro fans. Its main advantage is additional cooling headroom, especially when a CPU produces high levels of heat for extended periods.
However, the larger cooler does not guarantee a huge temperature difference in every workload. Independent testing has shown that the gap between the 420 and high-performing 360mm AIOs can be relatively small around moderate power levels.
For this reason, the 420 makes the most sense when you have a compatible large case and a CPU or workload that can actually benefit from the additional thermal capacity.
The 360 is the more flexible option when case compatibility, installation practicality, and strong overall cooling are important.
FAQ
Q1: What is the main difference between the Arctic Liquid Freezer III Pro 360 and 420?
Ans: The primary difference is radiator and fan size. The Pro 360 uses a 360mm radiator with three 120mm P12 Pro fans, while the Pro 420 uses a larger 420mm radiator with three 140mm P14 Pro fans. The 420 therefore provides greater radiator surface area and airflow potential.
Q2: Is the Arctic Liquid Freezer III Pro 420 much cooler than the 360?
Ans: Not necessarily in every workload. The 420 has greater cooling capacity, but the temperature difference can be relatively small when CPU power is moderate. The advantage becomes more useful when the processor produces high sustained heat.
Q3: Which Arctic Liquid Freezer III Pro is better for gaming?
Ans: Both are highly capable for gaming. The Pro 360 is easier to fit into a wider range of cases and already provides substantial cooling capacity. The Pro 420 can be useful for high-power CPUs and users who want additional thermal headroom.
Q4: Does the Liquid Freezer III Pro 420 require a bigger PC case?
Ans: Yes. The 420mm radiator measures approximately 458 × 138 × 38mm, making it significantly larger than the Pro 360’s 398 × 120 × 38mm radiator. Case compatibility should be confirmed before purchasing.
Q5: Which model is better for Ryzen 9 and Core i9-class CPUs?
Ans: Both can be suitable, but the Pro 420 offers more thermal capacity for CPUs that sustain high power consumption. The Pro 360 can still provide excellent cooling when the processor operates within normal power limits and the case does not support a 420mm radiator.
Q6: Are the fans on the Pro 360 and Pro 420 different?
Ans: Yes. The Pro 360 uses three P12 Pro 120mm fans with a maximum speed of 3000 RPM. The Pro 420 uses three P14 Pro 140mm fans with a maximum speed of 2500 RPM. The P14 Pro provides higher rated airflow per fan, while the P12 Pro provides higher maximum static pressure.
Q7: Should I buy the Liquid Freezer III Pro 360 or 420?
Ans: Base the choice on your CPU, workload, case, and cooling requirements. The Pro 360 is a strong fit for high-performance systems where compatibility and flexibility matter. The Pro 420 is better suited to large cases and CPUs that can benefit from additional cooling capacity during sustained heavy workloads.
Short Conclusion
The Arctic Liquid Freezer III Pro 360 vs 420 battle is less about which cooler is universally better and more about matching radiator capacity to your system. The Pro 360 provides excellent high-end cooling in a more practical 360mm format, while the Pro 420 adds a larger radiator and 140mm fans for greater thermal headroom. For a large enthusiast build with a high-power CPU, the 420 provides additional cooling potential. For a powerful gaming or workstation PC where case compatibility matters, the 360 offers an excellent balance of performance and practicality.
