When evaluating lga 2066 vs lga 1700, you are looking at a fundamental shift in Intel’s desktop architecture philosophy. Launched in 2017, LGA 2066 served as Intel’s High-End Desktop (HEDT) flagship socket, powering the Core X-series (Skylake-X and Cascade Lake-X) up to 18 cores alongside select Xeon W processors. It was engineered for extreme multi-threaded throughput, massive PCIe lane counts, and quad-channel memory support. Fast forward to LGA 1700, introduced with 12th Gen Alder Lake and extending through 14th Gen Raptor Lake Refresh, and Intel redefined mainstream performance. By adopting a performance-hybrid architecture (combining high-performance P-cores with energy-efficient E-cores), standardizing PCIe 5.0, and pioneering DDR5 memory, LGA 1700 elevated mainstream desktop capabilities beyond legacy HEDT thresholds. Understanding how these two platforms compare reveals whether legacy HEDT features or modern IPC efficiency best suits your workload needs.
Feature-by-Feature Comparison Table
The architectural difference between an HEDT platform built on a mesh interconnect and a modern mainstream platform built on a high-speed ring bus is substantial. While LGA 2066 offers dedicated hardware expansions like quad-channel memory, LGA 1700 relies on high clock speeds, massive IPC improvements, and fast DDR5 memory.
| Feature / Specification | LGA 2066 (Socket R4) | LGA 1700 (Socket V) |
|---|---|---|
| Market Segment | High-End Desktop (HEDT) & Entry Workstation | Mainstream Desktop & High-Performance Consumer |
| Release Era | 2017 – 2019 (Skylake-X, Cascade Lake-X) | 2021 – 2023 (12th, 13th, 14th Gen Core) |
| Max Core / Thread Count | 18 Cores / 36 Threads (e.g., Core i9-10980XE) | 24 Cores / 32 Threads (8P + 16E, e.g., i9-14900K) |
| CPU Architecture | Monolithic Die with Mesh Interconnect | Performance-Hybrid (P-Cores + E-Cores) |
| Process Node | 14nm / 14nm+ / 14nm++ | Intel 7 (10nm Enhanced SuperFin) |
| Memory Support | Quad-Channel DDR4 (Up to 2933/3200 MHz) | Dual-Channel DDR4 / DDR5 (Up to 8000+ MHz OC) |
| Max Memory Capacity | Up to 256 GB (Unbuffered) / 512 GB (ECC with Xeon) | Up to 192 GB (Non-ECC Unbuffered) |
| Peak Memory Bandwidth | ~94 GB/s (Quad-Channel DDR4-2933) | ~115+ GB/s (Dual-Channel DDR5-7200+) |
| CPU PCIe Lanes | Up to 48 Lanes (PCIe 3.0) | 16 Lanes (PCIe 5.0) + 4 Lanes (PCIe 4.0) |
| Chipset Interconnect | DMI 3.0 x4 (~3.93 GB/s) | DMI 4.0 x8 (~15.75 GB/s) |
| Instruction Set Extensions | AVX-512, AVX2, SSE4.2 | AVX2, DL Boost, GNA 3.0 (AVX-512 disabled) |
| Socket Physical Dimensions | 52.5 mm x 45.0 mm (Square/Large ILM) | 37.5 mm x 45.0 mm (Rectangular) |
| Base / Turbo Clocks | ~3.0 GHz Base / ~4.6 GHz Turbo | ~3.2 GHz Base / ~6.0 GHz Turbo |
| TDP / Power Draw | 140W – 165W Base (250W+ Peak under load) | 65W – 125W Base (253W – 300W+ Peak PL2) |
Quick Highlights Table
For a swift overview, here is how both platforms rank across key hardware metrics and real-world application categories.
| Socket Platform | Primary Architectural Strengths | Ideal Use Case |
|---|---|---|
| LGA 2066 | Quad-channel memory capacity, up to 48 direct CPU PCIe 3.0 lanes, hardware AVX-512 support, heavy multi-GPU stability. | Budget home-lab virtualization servers, multi-GPU rendering setups, memory-capacity-bound legacy workloads. |
| LGA 1700 | Massive single-thread IPC gains, high clock speeds (up to 6.0 GHz), DDR5 support, PCIe 5.0 expansion, hybrid efficiency. | High-FPS gaming, modern 4K/8K video editing, CAD design, single-threaded & mixed multi-core productivity. |
Key Takeaways
Transitioning from an older HEDT platform like LGA 2066 to a modern platform like LGA 1700 involves balancing raw expansion lane capacity against single-core speed and modern bandwidth protocols.

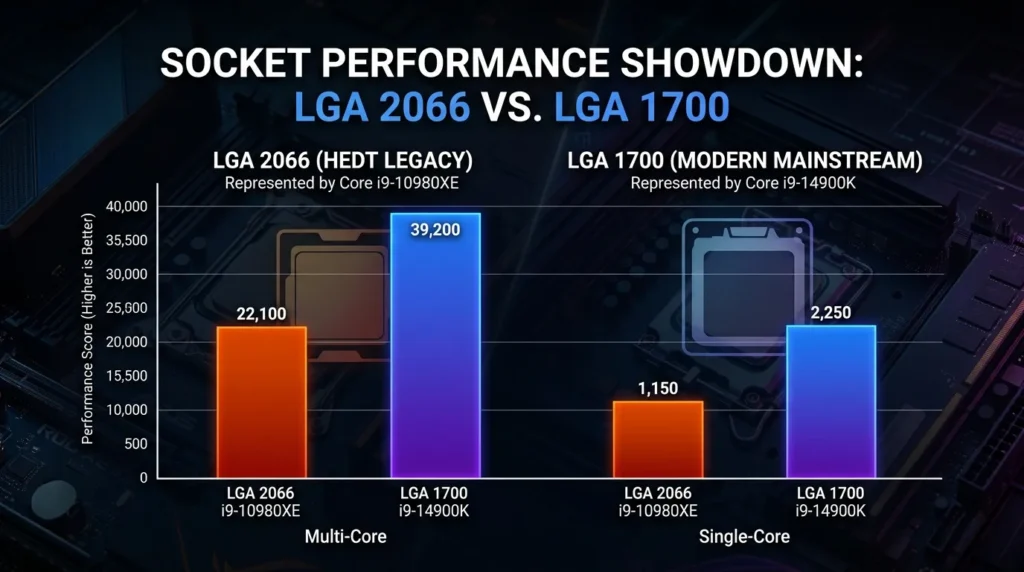

- Single-Core IPC Dominance: LGA 1700 processors provide over 60% higher single-threaded performance compared to LGA 2066 CPUs due to microarchitectural improvements (Golden Cove/Raptor Cove cores) and higher clock speeds.
- DDR5 Overcomes Quad-Channel Limits: While LGA 2066 uses quad-channel DDR4 memory to achieve around 94 GB/s of theoretical memory bandwidth, dual-channel DDR5 on LGA 1700 running at 7200 MHz or higher exceeds 115 GB/s, delivering higher bandwidth despite having fewer channels.
- PCIe Quality vs. Quantity: LGA 2066 provides up to 48 physical PCIe 3.0 lanes directly from the CPU, ideal for hosting multiple full-x16 expansion cards. LGA 1700 offers fewer lanes (20 direct CPU lanes), but its 16 PCIe 5.0 lanes yield equivalent bandwidth using fewer physical lanes.
- AVX-512 Instruction Support: LGA 2066 natively supports AVX-512 across its Core X-series and Xeon lines, whereas Intel fused off AVX-512 on LGA 1700 processors to maintain instruction consistency between P-cores and E-cores.
- Ecosystem Longevity: LGA 2066 is a mature, discontinued HEDT platform found primarily on the secondary market. LGA 1700 is a widely adopted, fully mature mainstream platform with a vast ecosystem of motherboards (Z690, B660, Z790, B760).

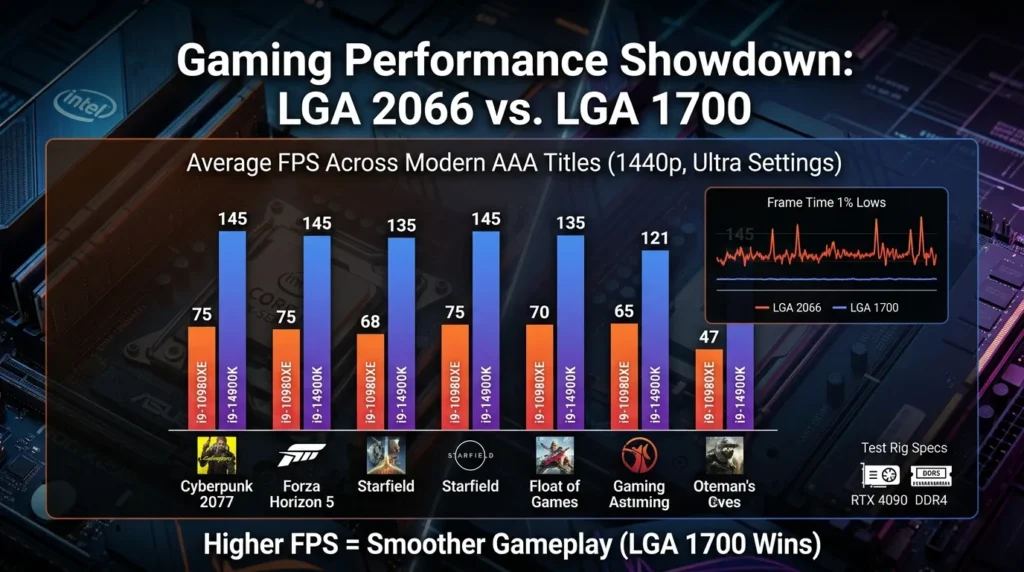

Gaming Performance Breakdown
While LGA 2066 was engineered as a workstation powerhouse, gaming performance tells a completely different story when pitted against the modern LGA 1700 platform. Modern games rely heavily on single-thread IPC (Instructions Per Cycle), core clock speeds, low memory latency, and fast cache access—areas where LGA 1700 holds a decisive architectural advantage.
- Single-Core Speed & IPC: Processors on LGA 1700 (such as the Core i7-14700K or i9-13900K) feature Golden Cove and Raptor Cove performance cores that easily push past 5.5–6.0 GHz. By contrast, LGA 2066 CPUs (like the Core i9-10980XE) peak around 4.6–4.8 GHz on older Skylake-derived 14nm architectures. In single-threaded benchmarks and real-world gaming, LGA 1700 offers roughly 60% to 80% higher single-thread throughput.
- Interconnect Latency (Mesh vs. Ring Bus): LGA 2066 relies on a mesh interconnect topology designed to manage high core counts across large workstation dies. However, this mesh architecture introduces higher core-to-core and core-to-cache latency compared to the high-speed Ring Bus interconnect used in LGA 1700 CPUs, leading to frame-time stutters in sensitive competitive games.
- 1% Lows & Frame Stability: Modern game engines utilize high-speed DDR5 memory (7000+ MT/s) and large L2/L3 caches on LGA 1700 to prevent GPU starvation. While LGA 2066’s quad-channel DDR4 offers high total bandwidth, its higher latency results in noticeably lower 1% low FPS, causing noticeable micro-stutters during heavy scene transitions.
Real-World FPS Expectations (1080p / 1440p High Refresh)
| Game Category | LGA 2066 (e.g., i9-10980XE) | LGA 1700 (e.g., i9-14900K / i7-13700K) | Performance Impact |
|---|---|---|---|
| Esports / Competitive (Valorant, CS2, Overwatch 2) | 280 – 380 FPS | 600 – 800+ FPS | LGA 1700 is ~100%+ Faster |
| CPU-Bound Open World (Cyberpunk 2077, GTA V, MSFS) | 75 – 100 FPS | 140 – 190 FPS | LGA 1700 is ~60–80% Faster |
| Heavy Simulation (Cities: Skylines II, Total War) | Moderate sim speeds | Ultra-fast frame rendering | LGA 1700 yields far smoother frame times |
If gaming is even a secondary priority for your build, LGA 1700 delivers a dramatically superior, higher-FPS, and stutter-free experience compared to any LGA 2066 CPU.
Pros & Cons of LGA 2066 vs LGA 1700
Understanding the trade-offs of lga 2066 vs lga 1700 requires looking at legacy expansion features versus modern architectural efficiency.
LGA 2066
- Pros:
- Native quad-channel memory architecture supporting high memory capacity (up to 256GB non-ECC, up to 512GB ECC on select Xeon boards).
- Up to 48 direct CPU PCIe 3.0 lanes, enabling multi-GPU configurations (x16/x16/x8) without needing expensive PLX multiplexer chips.
- Native AVX-512 execution units for specialized scientific modeling, emulation, and heavy mathematical computations.
- Sturdy socket design with integrated dual-lever latching mechanics for heavy heatsinks.
- Cons:
- Outdated 14nm architecture with lower IPC and lower power efficiency compared to modern standards.
- Slower single-core performance limits high-refresh-rate gaming and single-threaded CAD workloads.
- Restricted to older I/O standards, including PCIe 3.0 and slower DMI 3.0 chipset links.
- High power consumption and heat output relative to performance output.
LGA 1700
- Pros:
- Excellent single-core and multi-core performance driven by high clock speeds and hybrid P-core/E-core execution.
- PCIe 5.0 support delivers 32 GT/s per lane, future-proofing next-generation GPUs and NVMe SSDs.
- Native DDR5 memory support delivers exceptional transfer rates exceeding 7000+ MT/s.
- Fast DMI 4.0 x8 chipset link eliminates bandwidth bottlenecks between attached storage and peripherals.
- Wide motherboard availability across diverse price points and form factors (Mini-ITX, Micro-ATX, ATX).
- Cons:
- Direct CPU PCIe lanes are limited to 20 total (16 Gen 5 + 4 Gen 4), making multi-x16 expansion cards trickier.
- Maximum RAM capacity is capped at 192GB using non-binary DDR5 DIMMs (4x48GB).
- Lacks native AVX-512 support on mainstream silicon.
- Elongated CPU shape requires careful cooler installation or aftermarket contact frames to prevent socket bending.
Buying Recommendations
Choosing between these two sockets comes down to your primary use cases, budget constraints, and expansion requirements.
Choose LGA 1700 If:
- You prioritize gaming and general desktop responsiveness: The single-thread performance on processors like the Core i5-13600K, i7-14700K, or i9-13900K far outpaces anything on LGA 2066, delivering significantly higher frame rates in modern games.
- You want modern platform standards: Features like DDR5 memory, PCIe 5.0 graphics slots, PCIe 4.0 M.2 NVMe drives, Wi-Fi 6E/7, and USB 3.2 Gen 2×2 are standard on LGA 1700 motherboards.
- You need strong energy efficiency under light-to-medium workloads: The hybrid microarchitecture allows background tasks to run on low-power Efficient-cores, keeping system power low during idle or lightweight productivity tasks.
- You prefer new components with warranties: LGA 1700 motherboards, processors, and coolers are widely available through retail channels with full factory warranties.
Choose LGA 2066 If:
- You are building a budget home server or virtualization host: Used LGA 2066 processors (such as the Core i9-9900X, i9-10900X, or i9-10980XE) and X299 motherboards can often be found at low prices on secondary markets, offering a cost-effective route to 12–18 physical cores.
- Your application requires massive memory bandwidth on DDR4: If you already own high-capacity DDR4 kits, an LGA 2066 motherboard lets you populate 8 DIMM slots in quad-channel mode to reach 128GB or 256GB of system RAM without paying for expensive DDR5 modules.
- You run multiple full-speed PCIe expansion cards: For tasks that require three or four PCIe slots running at x8 or x16 speeds (such as deep learning rigs, multiple video capture cards, or SAS HBA RAID controllers), LGA 2066’s 48 direct CPU lanes handle multi-card expansion with ease.
- Your software relies specifically on AVX-512: Certain scientific simulations, financial modeling tools, and emulators scale well with native AVX-512 instruction execution.
Final Verdict
The debate between lga 2066 vs lga 1700 highlights how fast desktop hardware advances over a few generations. While LGA 2066 holds an important place in PC hardware history as a capable HEDT platform, LGA 1700 is the clear overall winner for modern desktop computing.
The single-thread performance, power efficiency, and memory speeds offered by Intel’s 12th, 13th, and 14th Gen processors on LGA 1700 outperform older HEDT platforms across almost every metric. Thanks to high-speed DDR5 memory, dual-channel setups now rival or exceed the raw bandwidth of legacy quad-channel DDR4. Moreover, the inclusion of PCIe 5.0 ensures LGA 1700 remains compatible with modern storage and graphics hardware.
LGA 2066 remains relevant primarily in niche, budget-conscious secondary market scenarios—such as building a home virtualization server, running multi-GPU compute rigs, or deploying systems that require high DDR4 memory capacity and native AVX-512 instructions. For standard desktop users, gamers, content creators, and mainstream workstation users, LGA 1700 provides superior performance, modern features, and an upgraded user experience.
FAQ Section
Q1: Is LGA 2066 still worth buying today?
Ans: For most users, no. LGA 2066 is a discontinued platform, meaning new components are rare and expensive. However, if you find used CPUs like the Core i9-10980XE and X299 motherboards at steep discounts, it can be a cost-effective platform for budget home labs, virtualization, or multi-GPU configurations that benefit from direct PCIe lanes and quad-channel DDR4 memory.
Q2: Does LGA 1700 support DDR4 memory like LGA 2066?
Ans: Yes, LGA 1700 features a hybrid memory controller that supports both DDR4 and DDR5 memory. However, motherboard support is mutually exclusive: you must choose either a DDR4-specific LGA 1700 motherboard or a DDR5-specific motherboard at the time of purchase. LGA 2066 exclusively supports DDR4 memory across its entire platform.
Q3: Is quad-channel DDR4 on LGA 2066 faster than dual-channel DDR5 on LGA 1700?
Ans: In overall peak bandwidth, modern dual-channel DDR5 is faster. Quad-channel DDR4 at 2933 MHz on LGA 2066 yields approximately 94 GB/s of theoretical bandwidth. By comparison, dual-channel DDR5 running at 7200 MHz on LGA 1700 delivers over 115 GB/s. While quad-channel setups offer low latency and high stability for massive memory capacities, high-frequency DDR5 outperforms quad-channel DDR4 in raw speed.
Q4: Can I use an LGA 2066 CPU cooler on an LGA 1700 motherboard?
Ans: Not out of the box without an adapter bracket. LGA 2066 uses a square mounting hole pattern (80mm x 80mm) with integrated threaded standoffs on the socket frame. LGA 1700 uses a rectangular mounting pattern (78mm x 78mm) and a lower z-height profile. Most major cooler manufacturers offer dedicated LGA 1700 mounting bracket upgrade kits to adapt older heatsinks and liquid coolers.
Q5: Why does LGA 2066 have more PCIe lanes than LGA 1700?
Ans: LGA 2066 was designed as an HEDT (High-End Desktop) platform built to handle enterprise-grade workstation expansion, such as running three or four full-length graphics cards in SLI/CrossFire or hosting multiple add-in RAID cards. LGA 1700 is a mainstream consumer platform; while it provides fewer physical lanes (20 direct CPU lanes), its 16 PCIe 5.0 lanes offer double the bandwidth per lane compared to LGA 2066’s PCIe 3.0 lanes.
Q6: Which socket is better for gaming, LGA 2066 or LGA 1700?
Ans: LGA 1700 is significantly better for gaming. Modern games rely heavily on single-core IPC and high CPU clock speeds. LGA 1700 CPUs (such as the i5-13600K or i7-14700K) deliver over 50% higher single-core performance compared to LGA 2066 CPUs, resulting in substantially higher frame rates, better 1% low FPS, and smoother gaming performance.
Q7: Will Intel release any new CPUs for LGA 1700 or LGA 2066?
Ans: No. Both platforms have reached the end of their lifecycle for new CPU generations. LGA 2066 was succeeded by LGA 4189 and LGA 4677 in workstation markets. LGA 1700 completed its lifespan with 14th Gen Raptor Lake Refresh processors, with Intel transitioning to newer socket architectures (such as LGA 1851) for subsequent CPU generations.
Short Conclusion
Comparing lga 2066 vs lga 1700 highlights how fast desktop hardware moves over time. While LGA 2066 remains a solid option for budget workstation builds that need high memory capacities and plenty of PCIe expansion lanes, LGA 1700 delivers better single-thread speed, higher multi-core performance, faster DDR5 support, and modern PCIe 5.0 connectivity. For almost all contemporary gaming, content creation, and general workstation builds, LGA 1700 is the faster, more efficient, and more future-ready choice.
If you have any questions about “LGA 2066 vs LGA 1700: Which CPU Socket is the Best?”, feel free to let us know through your comments.
