If you are planning to upgrade your gaming rig or build a new desktop, navigating the hardware interface standards can feel like a minefield. One of the most persistent debates among PC builders centers around whether matching a newer GPU with an older motherboard will cripple your frame rates. Specifically, how much performance do you actually lose when pairing a modern PCIe Gen 3 vs gen 4 graphics card?
At its core, PCI Express (PCIe) is the high-speed data highway that links your central processor (CPU) directly to your graphics card (GPU) and high-speed storage. While PCIe Gen 4 doubles the theoretical speed limit of its predecessor, the practical reality inside games is far more nuanced. For most graphics cards running on full-width lanes, the physical bus is rarely the bottleneck. However, modern hardware design shifts have introduced severe performance traps for budget-focused builders, making this comparison more critical than ever.
Understanding the Physical Bus: Lanes and Bandwidth
To understand why the generational leap matters, we have to look at how a graphics card physically communicates with your motherboard. PCIe slots are designed with varying numbers of “lanes,” which are the copper traces on the motherboard that transmit data bidirectionally. These are designated as x1, x4, x8, or x16.
As shown in the physical layout above, a standard graphics card sits in the longest slot—the x16 slot—which provides the maximum number of simultaneous data pipelines.
Each generation of PCIe doubles the transfer rate of the previous one by increasing the gigatransfers per second (GT/s).
- PCIe Gen 3 operates at 8 GT/s, which translates to roughly 1 GB/s of unidirectional bandwidth per lane.
- PCIe Gen 4 runs at 16 GT/s, yielding approximately 2 GB/s per lane.
Because of this scaling, a graphics card utilizing a PCIe Gen 4 x8 connection (typically found in modern mid-range cards) receives the exact same physical bandwidth (16 GB/s) as a full PCIe Gen 3 x16 connection.
Furthermore, both generations utilize highly efficient 128b/130b encoding. Older standards (Gen 1 and Gen 2) relied on an 8b/10b encoding scheme, which introduced a massive 20% protocol overhead. The 128b/130b mechanism used in both Gen 3 and Gen 4 reduces this protocol overhead to a mere 1.54%, ensuring that almost the entirety of the physical bus bandwidth is used for actual data transmission.
Feature-by-Feature Comparison Table
Below is a detailed technical breakdown highlighting the specifications of both generations. While the physical slots look identical due to backward and forward compatibility, the underlying capabilities of the bus are worlds apart.
| Technical Feature | PCIe Gen 3 Standard | PCIe Gen 4 Standard |
| Release Year | 2010 | 2017 |
| Raw Data Transfer Rate | 8.0 GT/s | 16.0 GT/s |
| Bandwidth (per lane) | ~985 MB/s (~1 GB/s) | ~1969 MB/s (~2 GB/s) |
| x4 Lane Bandwidth | ~3.9 GB/s | ~7.9 GB/s |
| x8 Lane Bandwidth | ~7.9 GB/s | ~15.8 GB/s |
| x16 Lane Bandwidth | ~15.8 GB/s | ~31.5 GB/s |
| Encoding Overhead | 128b/130b (~1.54%) | 128b/130b (~1.54%) |
| Bus Signal Frequency | 8 GHz | 16 GHz |
| Power Delivery | Up to 75W (from slot) | Up to 75W (from slot) |
| Backward Compatibility | Fully Compatible | Fully Compatible |
Quick Highlights Table
For a high-level summary of how these technical specifications translate into real-world impact for everyday desktop users, check out this quick highlights guide:
| Metric | PCIe Gen 3 | PCIe Gen 4 |
| Primary Use Case | Budget gaming, legacy office systems | High-end gaming, professional editing, AI |
| High-End GPU Performance Loss | Extremely low (1% to 3%) | None (baseline performance) |
| Budget GPU Performance Loss | Low to high (up to 30% on x4 cards) | None (baseline performance) |
| NVMe Storage Read Speed Capacity | Cap at ~3,500 MB/s | Cap at ~7,500 MB/s |
| Hardware Pricing Premium | Extremely low / Legacy pricing | Standard mainstream pricing |
Real-World Gaming Performance & Bottlenecks

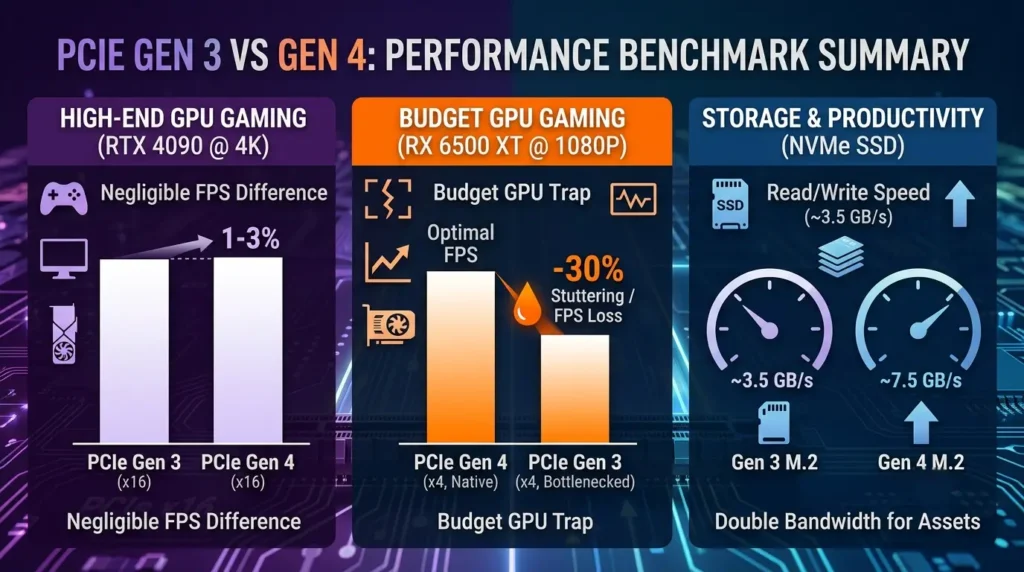

Many PC enthusiasts worry that sticking with a PCIe Gen 3 motherboard will bottleneck a powerhouse GPU like the Nvidia RTX 4090 or AMD RX 7900 XTX. In practice, gaming benchmarks reveal that the real-world performance difference for premium, unrestricted graphics cards is negligible—often landing between 1% and 3%.
Why is this? High-end graphics cards use a full x16 lane configuration. The 15.8 GB/s interface provided by PCIe Gen 3 x16 remains incredibly wide. Most games load assets (textures, shaders, and geometry) into the graphics card’s onboard Video RAM (VRAM) during loading screens. Once those assets are sitting in the ultra-fast VRAM, the actual frame-by-frame rendering calculations happen locally on the GPU core, requiring very little real-time interaction across the PCIe bus.
The Budget Card Lane-Cut Trap
The story changes drastically when we look at modern entry-level and budget graphics cards. In an effort to cut manufacturing costs, GPU manufacturers often physically limit the PCIe lanes on budget cards:
- RTX 4060 / RX 7600 / RX 6600: Physically wired for only x8 lanes.
- RX 6500 XT / RX 6400: Severely restricted to a mere x4 lanes.
If you plug a PCIe Gen 4 x8 graphics card (like the RTX 4060) into a PCIe Gen 3 motherboard, the system is forced to run the GPU at PCIe Gen 3 x8 speed. This drops your available bandwidth down to 8 GB/s. While this is usually fine for most titles, the margin of error becomes razor-thin.
The situation becomes disastrous with x4 lane cards like the RX 6500 XT. Running a Gen 4 x4 card on a Gen 3 motherboard limits the connection to PCIe Gen 3 x4. This chokes the GPU’s bandwidth down to just 4 GB/s—which is slower than the original PCIe Gen 1.0 x16 standard from decades ago.
The VRAM Overflow Nightmare
When a budget graphics card only has 4GB or 8GB of VRAM, demanding games will inevitably run out of local video memory. When this happens, the GPU must use your system’s regular RAM as an “overflow” buffer.
To fetch data from the system RAM, the GPU must travel across the PCIe bus. If you are on a PCIe Gen 4 motherboard, this transfer is relatively fast. But on a PCIe Gen 3 motherboard with a cut-down lane count (x4 or x8), the bus gets completely saturated. This bandwidth starvation manifests as severe, jarring frame-time spikes, massive stuttering, and a drop in 1% low frame rates by up to 20% to 35%.
Key Takeaways
- High-End GPUs Are Safe: Flagship cards running at x16 lanes experience almost zero performance loss on older PCIe Gen 3 platforms.
- Budget GPUs Face Risks: Entry-level graphics cards with physically cut-down lane configurations (x4 or x8) suffer major bottlenecks on older standards.
- VRAM Capacity is the Shield: Having ample VRAM prevents the card from needing to call data across the PCIe bus, bypassing the Gen 3 bottleneck entirely.
- Backward & Forward Compatibility: All PCIe generations are cross-compatible; your system will always auto-negotiate to run at the speed of the slowest connected component.
Pros & Cons of PCIe Gen 3 vs Gen 4 Graphics Cards
Analyzing the trade-offs of choosing a motherboard and pcie gen 3 vs gen 4 graphics card setup helps clarify which route fits your budget.
PCIe Gen 3 Setup
Pros:
- Legacy motherboards (e.g., AMD B450 or Intel H610) are incredibly affordable.
- Fully compatible with any modern graphics card on the market.
- Zero performance compromises when paired with any x16 lane graphics card.
Cons:
- Artificially chokes modern x4 and x8 lane budget graphics cards.
- Restricts high-speed NVMe SSDs to half of their potential read/write performance.
- Lacks future-proofing for next-generation hardware upgrades.
PCIe Gen 4 Setup
Pros:
- Unlocks the maximum rated performance of any modern graphics card.
- Eradicates performance bottlenecks on cut-down x4 and x8 budget GPUs.
- Enables blistering storage speeds (exceeding 7,000 MB/s) on Gen 4 NVMe SSDs.
- Offers native support for DirectStorage technology in modern games.
Cons:
- Compatible motherboards and CPUs can cost slightly more than older legacy platforms.
- Requires a processor upgrade if you are moving from an older CPU socket architecture.
Buying Recommendations
Navigating these interface architectures requires looking closely at your current system specifications and gaming goals.
Scenario A: You Are Upgrading an Existing PCIe Gen 3 System
If you currently own a solid PCIe Gen 3 platform (such as an AMD Ryzen 5 3600 on a B450 motherboard) and want to upgrade your graphics card, your buying strategy should be simple:
- Choose x16 Cards: Look for graphics cards that utilize the full x16 lane width (e.g., RTX 3070, RTX 4070, RX 7800 XT). These cards will run beautifully on your system without requiring a costly motherboard or CPU swap.
- Avoid Cut-Down Cards: Avoid low-VRAM x4 or x8 graphics cards like the RX 6500 XT or RTX 4060 unless you plan to upgrade your motherboard in the near future.
Scenario B: You Are Building a New PC from Scratch
If you are building a new desktop, there is absolutely no reason to buy PCIe Gen 3 components.
- Ensure your motherboard chipset supports PCIe Gen 4 (such as AMD’s B550, B650, or Intel’s B760/Z790 architectures).
- Pair it with a native PCIe Gen 4 processor. This ensures complete compatibility, flawless performance across all budget GPUs, and access to ultra-fast NVMe storage speeds.
Final Verdict
For the vast majority of mainstream gamers, the debate between a pcie gen 3 vs gen 4 graphics card boils down to lane configurations rather than the generation itself.
If you are running a mid-to-high-end graphics card that boasts a full x16 connection, you can comfortably remain on a PCIe Gen 3 platform without worrying about leaving performance on the table. The minor 1% to 3% difference is completely imperceptible in actual gameplay.
However, if you are looking to purchase a modern entry-level GPU with cut-down physical lanes (x8 or x4), upgrading to a native PCIe Gen 4 platform is highly recommended. Doing so prevents severe frame rate drops, micro-stutters, and allows your hardware to perform exactly as the manufacturer intended.
FAQs
Q1: Can I physically plug a PCIe Gen 4 graphics card into a PCIe Gen 3 slot?
Ans: Yes, absolutely. All PCI Express slots are fully backward and forward compatible. A PCIe Gen 4 graphics card will slide perfectly into a PCIe Gen 3 slot and function without any stability issues. The system will automatically adapt and run the interface at PCIe Gen 3 speeds.
Q2: Will I lose FPS if I use a high-end Gen 4 GPU on a Gen 3 motherboard?
Ans: The performance loss is negligible (typically between 1% and 3%). High-end graphics cards use the full x16 lane layout, providing massive physical bandwidth that is more than enough for current gaming workloads. Unless you are tracking frame rates with professional benchmarking software, you will not notice a difference.
Q3: Why do some budget graphics cards perform so poorly on PCIe Gen 3 systems?
Ans: Because they are physically limited to x4 or x8 lanes. Budget cards like the RX 6500 XT (x4) or RTX 4060 (x8) rely on the faster bandwidth of Gen 4 to make up for their lack of physical lanes. Running them on Gen 3 cuts their bandwidth in half, resulting in performance drops of up to 30% if the game runs out of VRAM.
Q4: How do I check if my current motherboard and CPU support PCIe Gen 4?
Ans: You can check this via free monitoring software like CPU-Z or GPU-Z. Additionally, you can look up your motherboard’s chipset specs online. Modern platforms like AMD’s B550/X570/B650 and Intel’s B660/B760/Z790 native support PCIe Gen 4, provided you are using a compatible CPU.
Q5: Is there a power consumption difference between PCIe Gen 3 and Gen 4?
Ans: No, power delivery from the motherboard slot is identical. Both PCIe Gen 3 and Gen 4 slots are limited to delivering a maximum of 75W of power directly through the motherboard slot. Any additional power required by high-performance graphics cards is supplied via external PCIe power cables running from your power supply unit (PSU).
Q6: Does PCIe Gen 4 lower system latency or just increase bandwidth?
Ans: It primarily increases bandwidth, but it can indirectly lower systemic latency. By doubling the transfer rate to 16 GT/s, massive game files, high-resolution textures, and rendering commands travel across the bus twice as fast, reducing wait times and bus-related latency spikes during asset-heavy sequences.
Q7: Should I upgrade my motherboard just to get PCIe Gen 4 support?
Ans: Only if you are running a lane-restricted budget GPU or need ultra-fast NVMe storage. If you have a full x16 graphics card and a standard SATA or Gen 3 M.2 SSD, upgrading your motherboard yields virtually no benefit. Save your money for a more substantial upgrade, like a faster CPU or a higher-tier graphics card.
Conclusion
At the end of the day, PCIe standards are built to ensure your PC remains functional across generations of upgrades. While PCIe Gen 4 is technically superior on paper, it is not a mandatory upgrade for everyone. If you have a high-end card with a full x16 bus, your legacy Gen 3 motherboard still has plenty of life left in it. Keep your budget in check, verify your GPU’s lane specifications before purchasing, and enjoy your gaming rig without unnecessary upgrade anxiety.
If you have any questions about “PCIe Gen 3 vs Gen 4 Graphics Card: The GPU Trap to Avoid”, feel free to let us know through your comments.
